This is a compatibility release for Draw to support AMS9

If you still wish to donate for the original version of Draw, or if you want to view the full changelog, check the original product page

Imagine Draw is an AMS Action plugin that will allow the developer to render 2D graphics onto images or a Canvas area on an AMS window. Outputs and images can be stored and loaded using several image formats.

Draw will allow you to decode, encode and draw onto images. Draw has many supported formats, such as (Decoders): PNG, JPEG, JPEG2000, BMP, ICO, TIFF, TGA and (Encoders): PNG, JPEG, JPEG2000, BMP.

Using Draw, you can generate any image you want. Included are tons of functions for rotation, mirroring, flipping, drawing lines, boxes, circles, ellipses, gradients, images onto images, arcs, polygons, bold lines, pies.

All this can be done using blending modes, currently there are over 50 blending modes available in Draw. Aside from blending modes, a few filters have been added as well. These filters allow you to draw diagonal, horizontal and vertical lines in specific areas, to negate the colors in a specific area, darken and lighten colors and more!

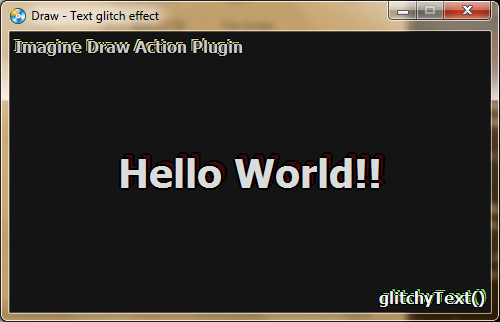

Draw also comes with functions to Load fonts, these allow you to preload an installed font and use them in your drawing code. You can draw text, angled text and determine the width and height calculated for a string of text you wish to draw.

Draw supports many pixel formats, from 8 bits RGB to 32 bits RGBA. If you create a new image, you have to choose between 24 bits RGB, 32 bits RGB and 32 bits RGBA, but once you encode the image to file or buffer you can specify which pixel format to use.

The submodule Color inside Draw allows you to work with colors, color calculation, conversion to hexadecimal strings, conversion from hexadecimal strings, gradient calculation, alpha blending or mixing two colors.

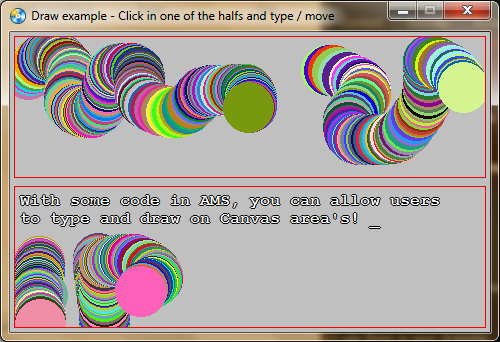

The, previously developed by RizlaUK, Canvas plugin will also be a part of Draw. The completely redesigned Canvas object is ported with this version. The Canvas allows you to draw directly onto an Object in AMS using the same functions as the ones used for drawing onto images. The Canvas object also allows events, grabbing mouse and keyboard input and more!

Features

Before trying things out yourself, it would be wise to read the documentation regarding this plugins as some operations can cause unwanted behaviour if not executed well. For example, it's important to never start drawing onto an output when you haven't stopped drawing onto the previous output.

• This software requires a Windows operating system equal to or greater than Windows 2000.
• This plugin requires AutoPlay Media Studio 8.0 or greater.
• This plugin might consume considerable amounts of memory when large images are being edited, it is important to take that into account.

• Lekë Dobruna - Thanks for helping me testing the plugin and giving me a lot of inspirational insight during the development process!
